    ETDS-W1 series Wall-mounted Digital signage



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES

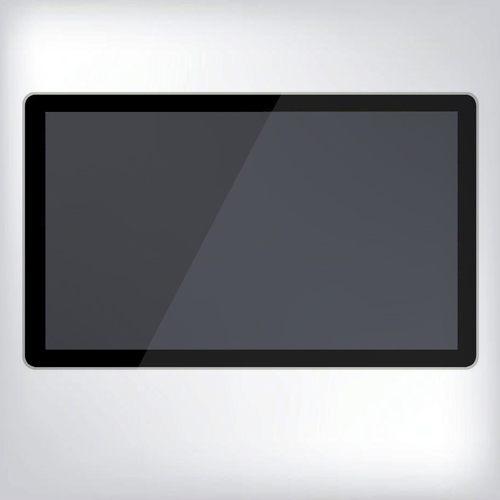

    Product name: Wall-mounted Digital signage
    Size: 10”/ 15.6”/18.5”/19”/21.5”/26”/32”/42”/46”/55”/65”
    Model number: ETDS-0100W to ETDS-0650W
    Max Resolution: 1920X1080
    Touch function: optional ( IR / Projected Capacitive )
    Optional: Wifi/3G/4G/WLAN/Android/Linux/Windows .etc
    Warranty: 2 years

    Main features:

    1. Longer stable life time up to 60000hours
    2. Wide viewing angle ,high brightness
    3. Industrial LED panel
    4. Support software upgrade function by U-sticker via USB port.
    5. Playing advertising file automatically & circularly after insert SD/U-sticker
    6. IR remote control
    7. Video format: AVI, MPEG1, MPEG2, MPEG4, MOV, WMV, RMVB, RM, ASF, HD1080 support etc.
    8. Apply the latest 4G digital multi-media processor technologies,excellent visual effect.

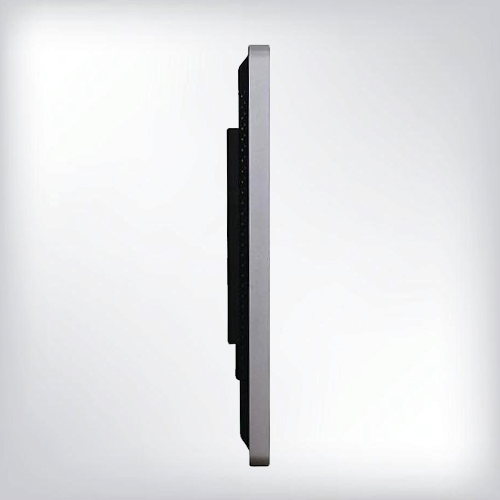

    9. Ultra-thin hardware case design, delicate and beautiful.With built-in speaker, combine audio and visual enjoyment together
    10. Stable & durable software support
    11. Landscape & Portrait format all support

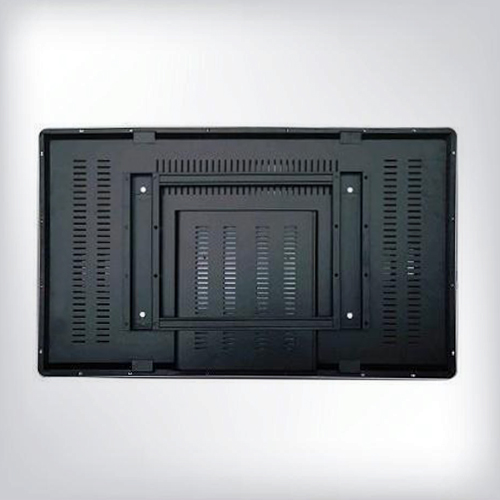

    12. Wall-mounted brackets convenient for installation
    Model Number  ETDS-0190W ETDS-0215W ETDS-0260W ETDS-0320W ETDS-0420W
    Size 19" 21.5" 26" 32" 42"
    Screen resolution 1440X900 1920X1080 1920X1080 1920X1080 1920X1080
    Viewing angle 160° / 160° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
    Color 16.7M 16.7M 16.7M 16.7M 16.7M
    Brightness 300cd/㎡ 250cd/㎡ 350cd/㎡ 350cd/㎡ 400cd/㎡
    Contrast ratio 1000:1 5000:1 5000:1 5000:1 5000:1
    Response Time 6ms 6ms 6ms 6ms 6ms
    Video Resolution 1080P
    Input Voltage 100-240V AC 100-240V AC 100-240V AC 100-240V AC 100-240V AC
    Speaker power 2 x 5W 2 x 5W 2 x 5W 2 x 5W 2 x 5W
    Total power 145W 255W 255W 325W 485W
    Working temperature  0℃~60℃  0℃~60℃  0℃~60℃  0℃~60℃  0℃~60℃
    24/7operation YES YES YES YES YES
    Standard warranty 2 Year 2 Year 2 Year 2 Year 2 Year
    Emission standard EMC EMC EMC EMC EMC
    RoHS compliant:  YES YES YES YES YES
    CE compliant YES YES YES YES YES
    Product dimension
    (mm)
    480x318x55.24 542x363x55.24 662x413x54.7 791x488.6x54 1050x642x55
    Packaging dimension
    (mm)
    575x420x150 650x500x150 820x560x150 1100x750x150 1100x750x150
