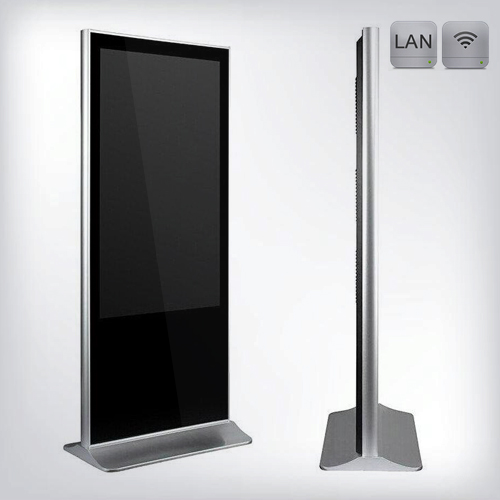

    ETDS F-series Floor Stand High Resolution Digital Signage



    • DESCRIPTION
    • SPECIFICATION

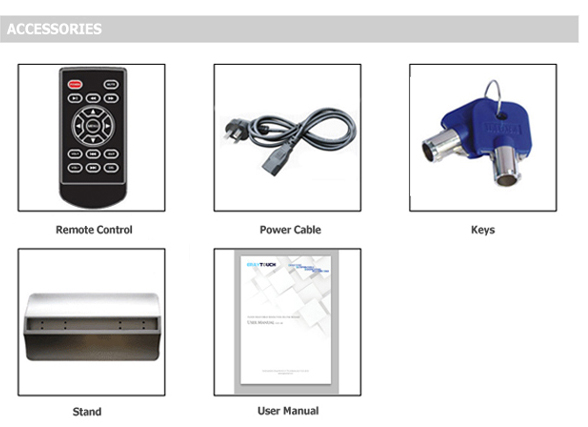

    • ACCESSORIES
    High resolution & brightness LED Floor stand digital signage widely used in Air port, Shopping mall, Hotel, Commercial center etc.

    Product name: Floor stand high resolution digital signage
    Size: 32”/42”/46”/55”/65”
    Model Number: ETDS-0320F to ETDS-0650F
    Max resolution: 1920 X 1080
    Touch function: Optional ( IR /Projected Capacitive)
    Optional: WIFI/3G/4G/WLAN/Android/Linux/Windows etc.
    Warranty: 2 years

    Main features:
    1. Longer stable life time up to 60000 hours
    2. wide viewing angle, high brightness
    3. industrial LED panel
    4. Support software upgrade function by U-sticker via USB port
    5. Playing advertising file automatically & circularly after insert SD/U-sticker
    6. IR remote control
    7. Video format: AVI, MPEG1, MPEG2, MPEG4, MOV, WMV, RMVB, RM, ASF, HD1080 support etc.
    8. Apply the latest 4G digital multi-media processor technologies, excellent visual effect
    9. Ultra-thin hardware case design, delicate and beautiful. With built-in speaker, combine audio and visual enjoyment together
    10. Stable & durable software support
    11. With Lock design, anti-theft functions
    Model Number  ETDS-0320F ETDS-0420F ETDS-0460F ETDS-0550F ETDS-0650F
    Size 32" 42" 46" 55" 65"
    Screen resolution 1366X768 1920X1080 1920X1080 1920X1080 1920X1080
    Viewing angle 160° / 160° 178° / 178° 178° / 178° 178° / 178° 178° / 178°
    Color 16.7M 16.7M 16.7M 16.7M 16.7M
    Brightness 350cd/㎡ 400cd/㎡ 400cd/㎡ 400cd/㎡ 500cd/㎡
    Contrast ratio 1000:1 5000:1 5000:1 5000:1 5000:1
    Response Time 6ms 6ms 6ms 6ms 6ms
    Video Resolution 1080P
    Input Voltage 100-240V AC 100-240V AC 100-240V AC 100-240V AC 100-240V AC
    Speaker power 2 x 5W 2 x 5W 2 x 5W 2 x 5W 2 x 5W
    Total power 145W 255W 255W 325W 485W
    Working temperature  0℃~60℃  0℃~60℃  0℃~60℃  0℃~60℃  0℃~60℃
    24/7operation YES YES YES YES YES
    Standard warranty 2 Year 2 Year 2 Year 2 Year 2 Year
    Emission standard EMC EMC EMC EMC EMC
    RoHS compliant:  YES YES YES YES YES
    CE compliant YES YES YES YES YES

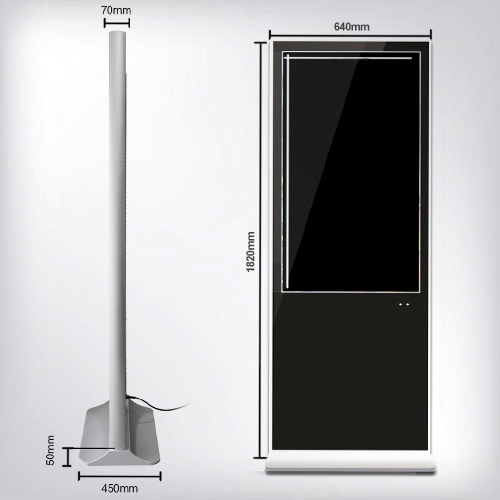

    Product dimension
    (mm, without stand)
    1640x520x50 1820x640x70 1800x700x90 1900x805x90 2123x937x150
    Packaging dimension
    (mm, without stand)
    1795x140x630 1920mmx750x150 1920mmx800x200 1960mmx920x200 2300x1050x200
