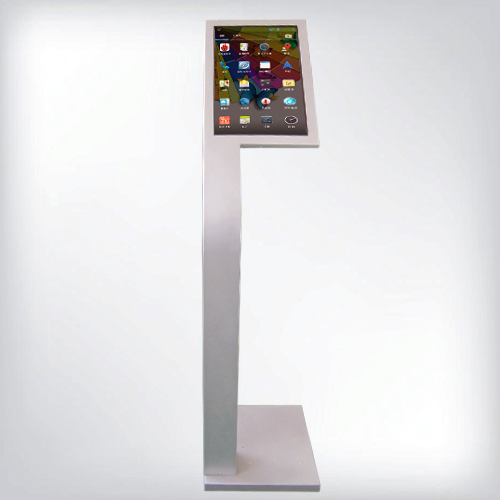

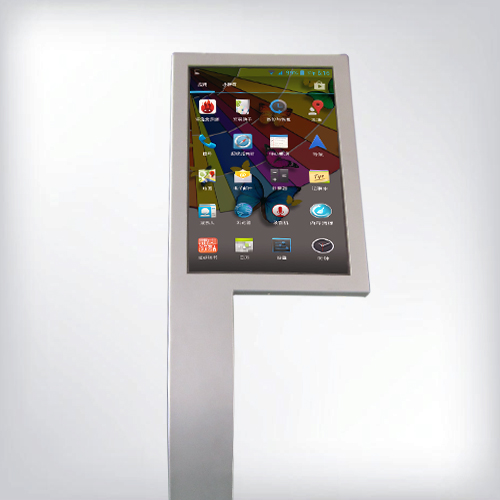

ETK-0190I-AF is a 19" IR Touch Pharmacy Inquiry Kiosk. This series of products is added our own unique technology to ensure the stability of the product, can make the final product unattended 7*24 hours.
•Android and X86 Industrial mainboard sulotion (1037U, J1900, I3, I5, I7) CPU options.
Display Parameters
Screen Size
19" TFT LCD
Screen Format
16:9
Contrast Ratio
1000:1
View Angle
89x89x89x89
Max Resolution
1940*900
Brightness
250cd//m2
Color
16.7M
Motherboard Hardware Parameters
CPU
Quad-core A31S , 1.2GHz
Operation system
Android 6.0
Memory
DDR3 1G/2G optional
Internal Storage
NAND FLASH 8G(default)/16G/32G
Display interface
LVDS interface
Touch Screen
10 points projected capacitive touch
Onboard backlight
12V
LCD voltage
3.3V/5V/12V optional
Network
RJ45, Ethernet, wifi & BT module
Image rotation
Support manual / automatic rotation (0/90/180/270 degrees)
Support gravity sensing function
3*serial port, support for external serial device modules
(3G modules, NFC modules, printers, card readers, etc.)
1*I2C port
SD card
Support TF card
Speaker
Left and right channel output, built-in dual 4R/20W, 8R/10W amplifier
Audio
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video
Supports 1080P decoding of H.264, VP8, RV, WMV, AVS, H.263,
MPEG4 and other video formats, online video such as YouTube,
up to 1080P, HTML5 video play, Flash 10.1 play
Support JPG, BMP, PNG and other image formats to browse and
support rotation / slide show / picture zoom function
Real time clock
built-in real time clock powered battery
Operation Guidance
Screen guidance, Voice guidance & Light guidance
Power
Input: AC100-240V.50-60HZ, Output: DC12V 3A
Application Enviroment
Working temperature：-20～50℃ Working Humility：25～85%
