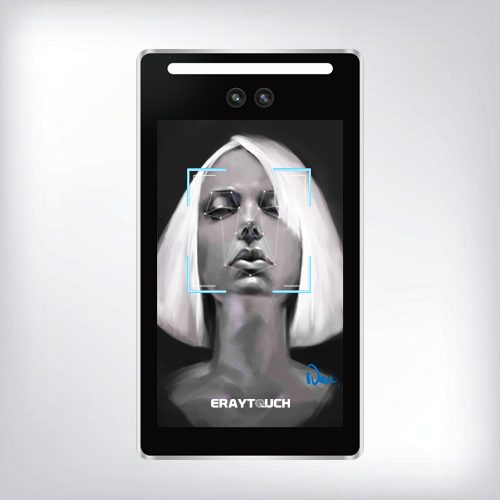

Dual-Cameras Face Recognition Smart Terminal
EST-0070C-M10FR

Features:

• Dual-cameras face recognition smart terminal is a functional, advanced designed recognition device. Hardware use Rockchip Quad-core CPU, 1080p wide dynamic visible light camera, 720p IR camera, 7 inches screen with multi-touch PCAP touch screen, strong performance with convenient operation. The shell uses whole- Aluminum alloy CNC tech, graceful fashionable & durable.

• Android 5.1 OS, convenient for software developing and integration solution. Support smart algorithms both for face visible light recognition & IR recognition, live detection supported, automatic white light compensation.

Specifications:
• 7 inches screen, Dual- Cameras
• Support Face Visible Light, IR Face recognition Smart algorithms
• Support Live detection
• Support identification in various harsh conditions, dark, weak, and shine light.
• Super large capacity, Support local comparisons
• Ultra slim Aluminum alloy shell, Beautiful appearance and fashionable, metal body, curve design smooth.
• High-quality material, Friction, anti-static, anti-corrosion, stable & durable

Applications:

• Smart community：Face Recognition Door Access
• Government & Enterprise：Face Recognition Attendance Access
• Financial Industry：Identity & Face Recognition Attendance
• Mineral Mountain：Miner’s Attendance
• Education Exams: Face Recognition Identity Exam
• Hotel：Door Access, Electronic Room Management

Model	EST-0070C-M10FR
Size	235mm*130mm*25mm(L*W*H)
Processor Configuration	Quad-core Cortex-A17, CPU1.8Ghz
Operation system	Android 5.1
Memory	DDR3 1G/2G Optional
Hard Disk	16GB EMMC
Internal Storage	NAND FLASH 8G/16G/32G
Interface	USB X3,DVP,LVDS,RS232,RJ45
Screen	7.0 inches LED screen
Screen Format	16:10
Contrast Ratio	600:1
View Angle	85x85x85x85
Max Resolution	1024*600
Brightness	330cd//m2
Color	16.7M
Touch Screen	Multi-touch projected capacitive touch
Storage Numbers	10000 groups
Working Distance	60cm～150cm
Data Communication	TCP/IP Wired network
Installation	Gate-type, Wall-mounted
Operation Guidance	Screen guidance, Voice guidance & Light guidance
Power	DC 12V@5A
Dual-Cameras	1X1.3MP IR face recognition 1X3MP Face visible light (wide dynamic)
Functions	Open Door Button
Ports	RJ45, RS232, Wigan26/34 Output Electric Relay
Recognition methods	IR face Recognition, Face Visible Light
Application Enviroment	Working temperature：-20～50℃ Working Humility：25～85%

Accessories:
1pc Stand Shelf
1pc User manual
1pc power adapter
Some Screws for Fixing the Shelf
