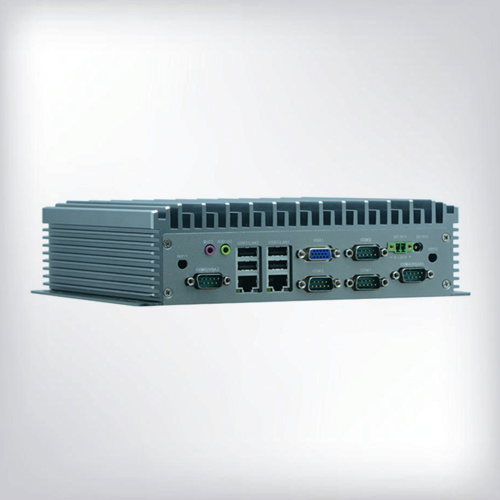

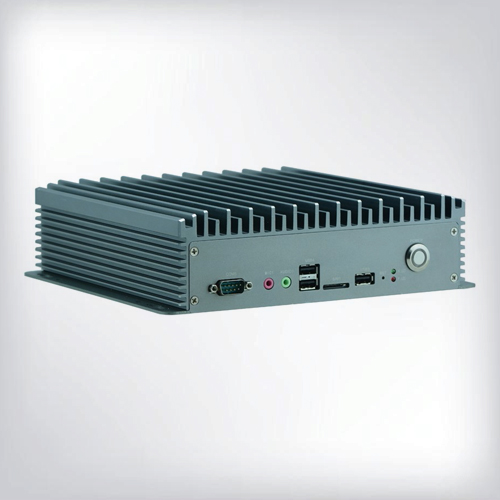

Industrial Fanless Panel PC (Silver)
EPC-FL01-J1900

Features:

♦ Fanless heat sink structure
♦ All Aluminum, Compact configuration, Convenient for installation
♦ Support WIFI & 3G module, 1 SIM slot extended
♦ 1* VGA output
♦ 2* Intel Gigabit network card, support wake-up function.
♦ Multiple I/O Interface:6* COM,1*VGA,2* Lan,2* Aduio 7* USB,1* POWER
♦ Size：235mm*200mm*62.5mm (L*W*H).

Cabinet	Color	Silver
	Size	235mm*200mm*62.5mm（L*W*H）
	Structure	All Aluminum Fanless Cooling system
Processor	CPU	Intel® Celeron  J1900 2.00GHz Quad-core
Graphics	Core	Integrated Intel® HD Graphics
Storage	Internal	1*DDR3LSODIMM,Support 1600/1333MHz SODIMM, Max support8GB
Hard Drive	SATA	Support 1*2.5寸 Hard Drive extended
	SSD	Support 1* MSATA SSD Extended
Front Interface	RS232	1* DB9 Standard
	USB	3* USB2.0 Interface
	Power	1* Power Button
	LED	1* hard disk light,1* Power signal light
	Audio	1* Line-out（green）,1* MIC(red）
	Extended	1* SIM slot
Back Interface	LAN	2* RJ45
	Display	1* VGA
	Power	1* 9V~36V DC power input，1* 2Pin DC 9V~36V power input
	Antenna	2* WIFI/3G SM Antenna（optional）
	Audio	1*Line-out,1* MIC
	Serial Interface	5* DB9 standard interface,COM4 support RS485 function
	USB	4* USB2.0
Power Adaptor	Input	AC 110V~ 220V
	Output	DC 12V/5A （accept input 9V~36V)
	Type	12V/5A Adaptor（ Input 9V~36V)
OS		Windows 7, Windows 8,Windows 10,,Linux
Reliable	Installation way	Desktop or Wall-mounted
	Working Temperature	-10℃～60℃
	Storage Temperature	-20℃～70℃
	Relative Humidity	5%-95% No condensation
	Working Viberation	0.5g rms/5-500HZ/random/operating

Accessories:

1pcs motherboard cd driver
1pcs power adapter
