Eraytouch EOT-0215C-A10 is 21.5 inches open-frame projected-capacitive touch monitor.
Main features: • 10-point PCAP touch Screen

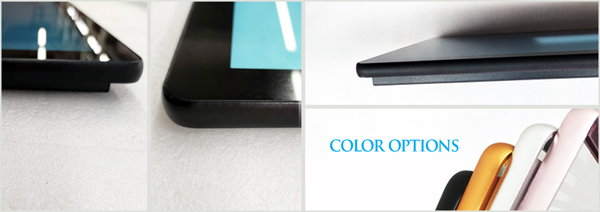

• Practical Interface HDMI, VGA and USB. • Four colors of side-frame and two colors of front-frame options.
• Variety of installation methods, horizontal bracket installation and vertical stand supported.
• 7x24 hours of long durability for the whole year, for any scene application.
Display configuration
Open-frame
Display
Display type
LED SCREEN
Active Area
476.24*267.71 mm
Resolution
1920*1080
Display Ratio
16:9
Colors
16.7m
Brightness
350cd/㎡
Contrast ratio
1000:1
View Angle
89/89/89/89（L/R/T/B）
Touch
Touch Technology
Projected Capacitive Touch (PCAP)
Touch Points
10-point
Touch response time
<10ms
Interface
USB
x1
VGA
x1
HDMI
x1
Audio/speaker
Speaker
Yes
Operation systems
Compatible with Win10/Win8/Win7/Win XP/
Linux/Android

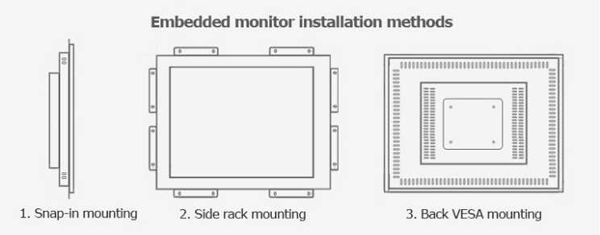

Installation methods
Wall-mounted, side mounting, embedded mounting
Input power
AC 110~240V 50/60Hz
Enviroments
Operation temperature: 0℃～50℃
Operation humidity: 20%～80%
Storage temperature: -20℃～60℃
Storage humidity: 5%～95%
Altitude:Lower than 1600m
Main structure & size
Materials
Aluminum alloy structure
Product size
525.9*317mm
Accessories:
1pc x Power adapter
1pc x User manual
8pcs x Mounting bracket (optional)
1pc x USB Cable (optional)
1pc x VGA Cable (optional)
Screws
