Model | EOT-0236C |

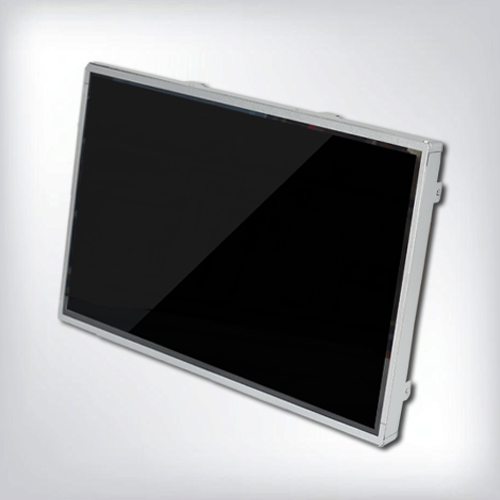

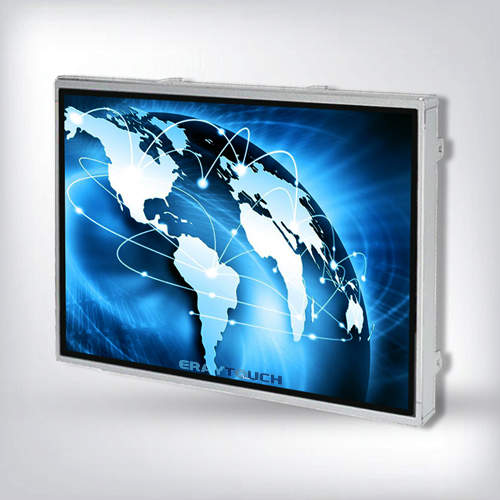

Description | 23.6” projected capacitive openframe touch monitor |
Size | 23.6" |
configuration | Openframe |
ratio | 16:09 |
Active size | 521×293(mm) |
Product externel size | length: 552.5mm |
width: 327.5mm | |
thickness: 29.5mm | |
Max resolution | 1920×1080 @ 60Hz |
Support colour | 16.7M |
Brightness | LED display: 300cd/m2 |
(Typ.) | LED display+Projected capacitive tocuh panel: 250cd/m2 |
Response time(Typ.) | 5ms |
View angle | Horizontal:89°/89° |
(Typ.at CR>10)) | Vertical:85°/85° |
Contrast Ratio (Typ.) | 1000:01:00 |

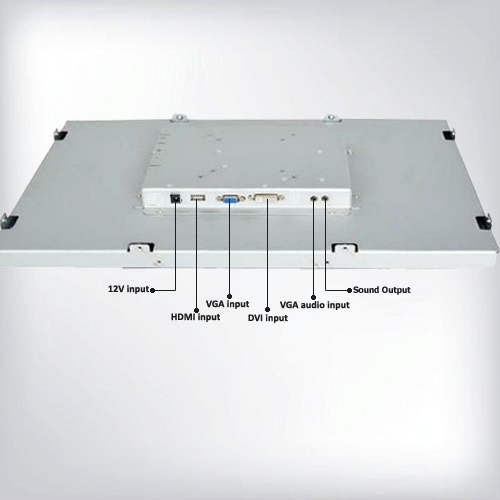

Video Input | VGA HDMI |
Frequency(H/V) | 30~80KHz / 60~75Hz |
Power | Type: External power adaptor |
Input:AC100-240 V, 50-60 Hz | |
Output\current: 12 V 3A | |
Enviroment | Working Temp: -10~60°C |
Storage Temp: -20~70°C | |
Operation Humidity: 5%~90% | |
torage Humidity: 5%~90% | |
AMTBF | 50,000 hours |
Backlit light life (Typ.) | 50,000 hours |
Power Comsuption | MAX 22W |
Standby Power | 0.95W |

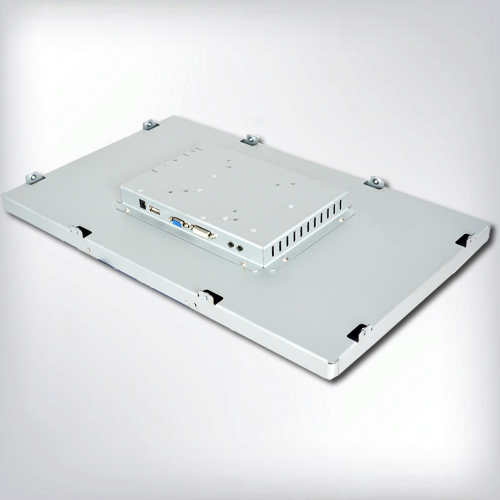

Installation mode | 1)VESA,detail dimension check the specification |
2)Brackets for Horizontal or Vertical installation | |
OSD buttons | Buttons: AUTO, +, Power, -, Menu |
Functions: Back light, Contrast ratio, AUTO adjustment, Phase position, Clock, Line field location, Language, Reset, FunctionsPhase |
|
Touch type |
Projected Capacitive Touch Panel (10 points touch under windows 7, Single Touch under windows XP) |
Touch interface | USB Interface |
Touch response time | <10ms |
Warranty | 2 years |
