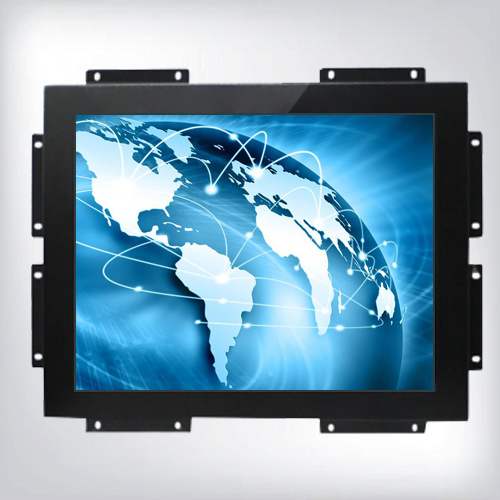

12.1" Open-frame 4:3 Resistive Touch Monitor
EOT-0121R-W5

Eraytouch EOT-0121R-W5 is a single touch 5 wire resistive open-frame industrial Touch monitor for information kiosk application.

Features:

-12.1 inches Open-frame Touch Monitor
-800*600 OR 1024*768
-DVI, VGA and USB
-5-Wire Resistive Touch
-CE & RoHs Certificate

Display Specification
Display Size	12.1" TFT LCD
Display Ratio	4:3
Resolution	800*600
Color	16M colors
Dot pitch	0.294mm
Visual Size	184*246mm
Brightness (nits)	400cd/m2
Signal connector	VGA
Contrast	1000:1
View Angle	H170/170 V160/160
Response Time	5ms
Life (hrs)	50000hours
General Specification
Frame Material	Metal
Frame Color	Black（or Silver grey）
Installation	Embedded（Wall-mounted/Rack）
Touch Screen Interface	VGA, DVI, USB
Touch Screen	5 Wire Resistive Touch Screen
Touch object	Pen / finger
Touch strength	75g（Finger）
Touch validity	>3,000,000
OSD	power, menu, auto, up, down
Menu Language	English, Germany, French, Spanish, Russian and Others
Power Supply	110-240 V AC / 12V DC, 50-60 Hz
Power Consumption	<20W
Line frequency	30-80KHZ
field frequency	56-75HZ
Operating condition:	Temperature:-10-60 degrees Celsius; Humidity:20-80%
Storage condition:	Temperature: -0 to +70 degrees Celsius; Humidity: 10%-90%
Weight (Net/Gross):	3kg/3.5kg
Operating System	Andriod, WinXP, Win7, Linux, etc.
