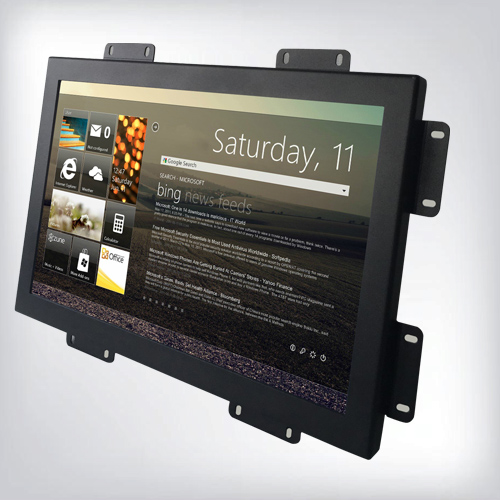

Eraytouch EOT-0121R-W5W is a single touch 5 wire resistive open-frame industrial wide-screen Touch monitor for ATM, advertising, transpertation and other kiosk application.
Features:
-12.1 inches Open-frame Touch Monitor
-1280*768 Wide Screen

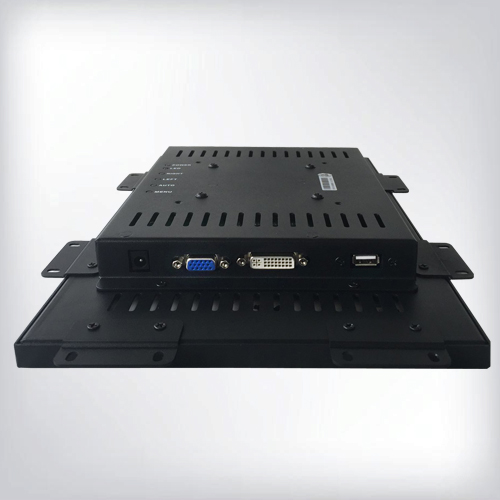

-DVI, VGA and USB
-5-Wire Resistive Touch
-CE & RoHs Certificate
Display Specification
Size
12.1" TFT LCD
Display Ratio
16:10
Resolution
1280*768
Color
16.7M
Pixels per Inch
124 PPI
Dot pitch
0.068*0.204mm(W*H)
View Area Size
261.1*163.2mm(W*H)
Brightness (nits)
400cd/m2
Backlight
LED
Signal connector
VGA
Contrast
1000:1
View Angle
H170/170 V160/160
Response Time
5ms
Life (hrs)
50000hours
General Specification
Frame Material
Metal
Frame Color
Black（or Silver grey）
Installation
Embedded（Wall-mounted/Rack）
Touch Screen Interface
VGA, DVI, USB
Touch Screen
5 Wire Resistive Touch Screen
Touch object
Pen / finger
Touch strength
75g（Finger）
Touch validity
>35,000,000 times

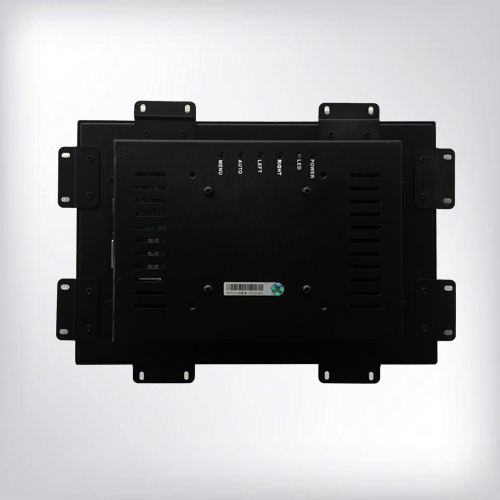

OSD
power, menu, auto, up, down
Menu Language
English, Germany, French, Spanish, Russian and Others
