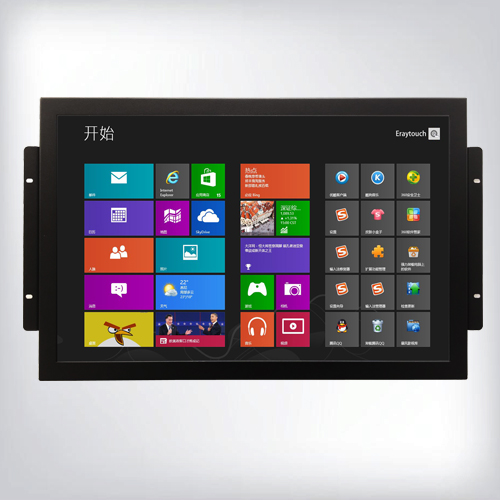

Eraytouch EOT-0190R-W5W is a single touch 5 wire resistive open-frame industrial wide-screen Touch monitor for ATM, advertising, transpertation and other kiosk application.
Features:
-19 inches Open-frame Touch Monitor
-1440*900 Wide Screen
-DVI, VGA and USB
-5-Wire Resistive Touch
-CE & RoHs Certificate
Display Specification
Size
19" TFT LCD
Display Ratio
16:10
Resolution
1440*900
Color
16.7M
Dot pitch
0.296mm
View Area Size
410.0*255.0mm(W*H)
Brightness (nits)
250cd/m2
Backlight
LED
Signal connector
VGA
Contrast
1000:1
View Angle
H170/170 V160/160
Response Time
5ms
Life (hrs)
50000hours
General Specification
Frame Material
Metal
Frame Color
Black（or Silver grey）
Installation
Embedded（Wall-mounted/Rack）
Touch Screen Interface
VGA, DVI, USB
Touch Screen
5 Wire Resistive Touch Screen
Touch object
Pen / finger
Touch strength
75g（Finger）
Touch validity
>35,000,000 times
OSD
power, menu, auto, up, down
Menu Language
English, Germany, French, Spanish, Russian and Others
Power Supply
110-240 V AC / 12V DC, 50-60 Hz
Power Consumption
<20W
Line frequency
30-80KHZ
field frequency
56-75HZ
Operating condition:
Temperature:-10 to +60 degrees Celsius;
Humidity:20-80%
Storage condition:
Temperature: -30 to +85 degrees Celsius;
Humidity: 10%-95%
