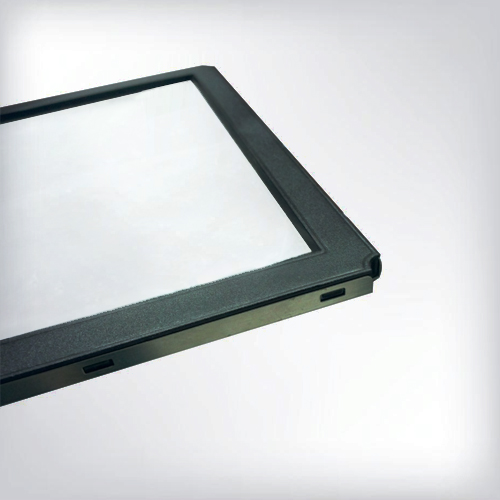

    IR Single-Touch P series (Plastic frame)



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    IR single-touch P series main features:
    1. High resolution, no drift for the changeable of time or environment.
    2. ABS plastic shell of texture surface of profuse colors.
    3. Adaptability of high resolution, no interference from current and voltage, adapt to harsh environment.
    4. Transmittance is above 95%.
    5. Water/Dust/Vandal proof, scrape-resistant.
    6. Excellent performance, touch without pressure.
    7. Single-touch for industrial use.
    8. Plastic frame and metal frame all available.


    Size
    (Inch)     		 Model Thickness
     (mm)    		 Touch Active Area Outside Dimensions
    Height
    (mm)    		 Width
    (mm)    		 Diagonal
    ( mm)    		 Height
    (mm)    		 Width
    (mm)
    7 ETS-0070I-P 7.5 87.58 154.08 177.23 127.04 191.17
    8 ETS-0080I-P 7.5 128.73 171.65 241.56 169.45 212.51
    10.2 ETS-0102I-P 7.2 133.48 223 259.9 172.58 262.09
    10.4 ETS-0104I-P 7.2 159.1 211.9 264.98 201.46 252.73
    12.1 ETS-0121I-P 7.2 185.5 247 308.9 229.89 291.12
    15.6 ETS-0156I-P 8 194.64 345.33 396.41 233.75 383.35
    15 ETS-0150I-P 8 228.2 304.2 380.28 270.6 346.65
    17 ETS-0170I-P 8 271.44 338.02 433.53 314.39 381.62
    18.5 ETS-0185I-P 8 231 410.4 470.95 273.07 451.99
    19 ETS-0190I-P 8 301.06 376.32 481.93 343.88 419.24

    Notes: The Thickness is the Touchscreen Thickness with glass and frame.
