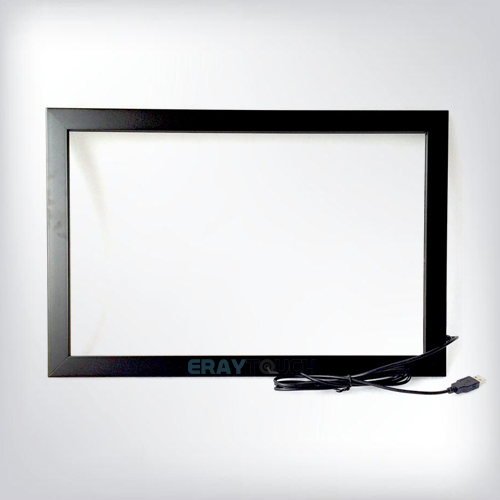

    IR Single-Touch frame T Series (Steel frame)



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES
    IR single-touch T series main features:
    1.High resolution, no drift for the changeable of time or environment.
    2. Adaptability of high resolution, no interference from current and voltage, adapt to harsh environment.
    3. Transmittance is above 95%.
    4. Water/Dust/Vandal proof, scrape-resistant.
    5. Excellent performance, touch without pressure.
    6. Single-touch for industrial use.
    7. Plastic frame and metal frame all available.


    Size
    (Inch)     		 Model  Thickness
     (mm)    		 Touch Active Area Outside Dimensions
    Height
     (mm)    		 Width
     (mm)    		 Diagonal
    ( mm)    		 Height
     (mm)    		 Width
    (mm)
    15 ETS-0150I-T 10 286 362 384.54 231.24 307.24
    17 ETS-0170I-T 10 270.74 338.24 433.25 328 396
    19 ETS-0190I-T 10 301.74 376.24 482.29 358.5 431.5
    18.5 ETS-0185I-T 10 229.74 409.24 469.32 283 470
    21.6 ETS-0216I-T 10 267.74 476.74 546.78 321 533
    26 ETS-0260I-T 10 323.94 575.94 660.79 381 649
    32 ETS-0320I-T 10 394.24 698.74 802.29 453 766
    42 ETS-0420I-T 10 523.25 930.25 1067.3 594 994
    46 ETS-0460I-T 14 573.86 1018.86 1169.36 632.5 1096.5
    50 ETS-0500I-T 15 625.36 1110.36 1274.35 704 1207
    55 ETS-0550I-T 14 680.94 1210.14 1388.57 759 1288.6
    60 ETS-0600I-T 15 756.36 1339.86 1538.61 828 1411
    65 ETS-0650I-T 15.5 804.36 1429.36 1640.14 881 1507
    Customization Service Support Size above 65 “ is available

    Notes: The Thickness is the Touchscreen Thickness with glass and frame.
