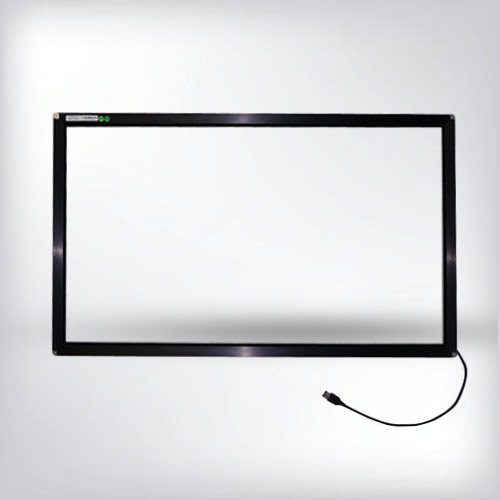

Infrared Touch Screen Frame without glass, Multi-touch points available, precise point positioning,
ultra-smooth fast touch action motion for users, 5.5 ms response time.
Compatible with multiple operating system : Windows XP, Windows 7/8, Vista, Linux, Android & MAC. Driver installation automatically( HID ) under windows 7/8/XP operation system. Ultra slim frame thickness is 19mm.
IR Multi-Touch Frame main features:
1. Rapid 5.5ms Response Time
2. Anti-interference of light technology
3. Precise Point Positioning
4. Exclusive Operation
5. High degree of fault-tolerance design
6. Easy plug-and-play
7. Landscape or Portrait Orientation
8. Any touch, finger, gloved hand or pointer (with diameter ≥ 5mm)
9. Compatible with Windows 7, Vista, XP, Mac OS, Linux
10. Smart power-saving to prolong the product life
11. Multi-touch 2/4/6/10/12/16/20/32/40 points all available
Size：22”-84”(Customization size is available)
Standard Size
22''- 84''
Dimension

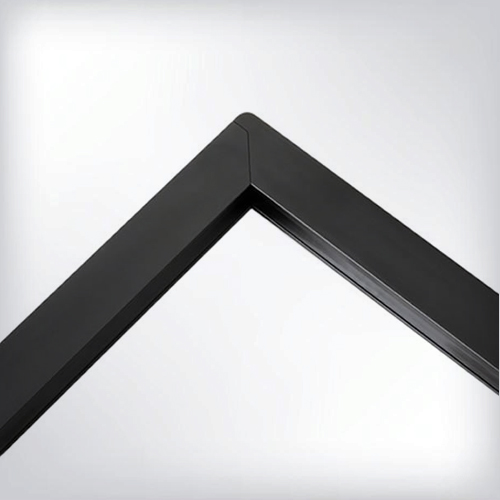

Frame 19mm width, 8.7mm thickness (without glass)
Number of Touch Points
2, 4, 6, 10, 12, 16, 32, 40
Minimum Touch Object
5mm
Touch Activation Force
No minimum touch pressure required
Touch Durability
60,000,000 touch/cm²
Resolution
32768*32768
Driver Free
HID* compatible, up to 40 touch points
Linearity Deviation
±1mm
Fault Tolerance
Workable even 75% sensors are damaged
Frames per Second
Up to 450 fps
Typical Response Time
3-10ms
Light Transmission
100% without glass
Operating Systems
Windows7, Windows8, Vista, XP, Mac OS, Linux, Android
