2. Material: Completely scratch-resistant glass material (Mohs hardness > 6H),
less susceptible to sharp objects scratching and wear, is not affected by common sources
such as water, fire, radiation, static electricity, dust or oil and so on.
3. Sensitivity: less than two ounces of force can be induced, less than 3ms' quick response.
4. Definition: Three surface treatment (Polish, Etch, Industrial) to choose from

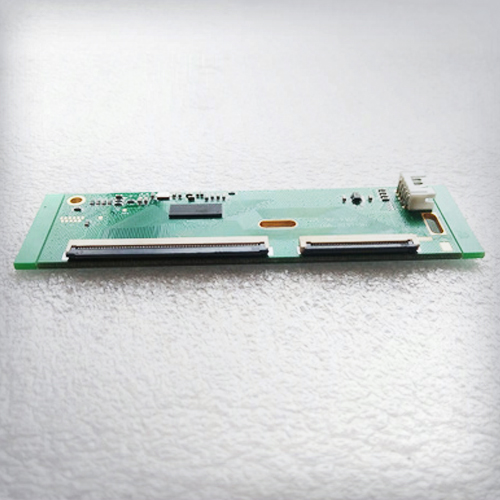

MTBF SMT controller is more than 572,600 hours
5. Touch Life: Any point can withstand more than 50 million times touch,
after a correction cursor does not drift.
Model number:
ETS-0150C-M5
ETS-0156C-M5
ETS-0170C-M5
ETS-0190C-M5
ETS-0215C-M5

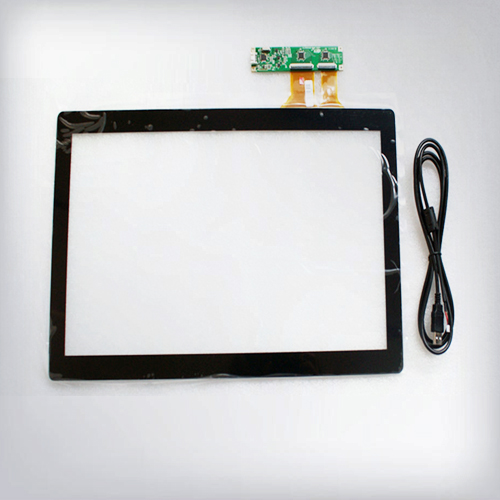

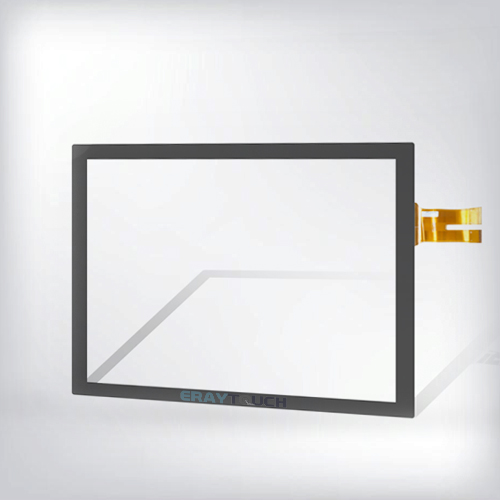

Touch Technology
Projected -Capacitive
Product Size
15”
15.6”
17”
19”
21.5”
Model number
ETS-0150C-M5
ETS-0156C-M5
ETS-0170C-M5
ETS-0190C-M5
ETS-0215C-M5
Thickness
2.4mm
Outline Dimension
339.9*263.9mm
386.8*237.1mm
370.9*303.3mm
441.5*289.4mm
516.1*311.0mm
Glass Dimension
324.5*252.1mm
364.8*225,1mm
355.2*289.6mm
424.3*277.2mm
504.0*292.0mm
Active Area
306.1*230.1mm
348.2*197.5mm
341.9*274.3mm
411.0*261.0mm
478.6*270.1mm
View Area
305.1*229.1mm
345.2*194.5mm
338.9*271.3mm
409.5*257.4mm
478.0*269.8mm
Communication Interface
USB
Touch Points
5 Points
Input Power
5V
Response Time
10ms
Pressure Resistance
<10g
Light Transmittance
>85%
Surface Hardness
≥6H
Remarks
Size below 15” & above 21.5” all accept customization service
