    SAW Touch Screen Standard Series



    • DESCRIPTION
    • SPECIFICATION
    • ACCESSORIES

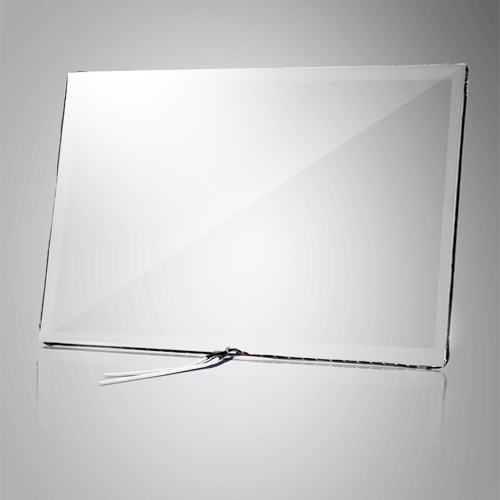

    Surface acoustic wave technology (patented) uses beveled corners on the glass touchscreen to lower the height profile of the transducers. The result is a significantly thinner touchscreen that allows slimmer bezel design and also reduces danger of transducer breakage during the integration process.
    Size from 7inch to 47inch
    Dual RS232 and USB Ports
    High resolution
    High light transmisson
    The Technical Specification of the SAW touchscreen

    Sizes Model No Thickness
    (mm)    		 Glass
    L*W(mm)    		 Viewable Area
    L*W(mm)    		 Active Area
    L*W(mm)
    7’’ ETS-0070S-4S 4 180*120 175*96 153*92
    8.4’’ ETS-0084S-4S 4 207*164 183*142 178*138
    10.4’’ ETS-0104S-4S 4 244*188 217*161 215*159
    12.1’’ ETS-0121S-4S 4 282*222 250*189 247*184
    12.1’’ ETS-0121S-4S 4 311*214 272*175 265*168
    15.1’’ ETS-0151S-3S 3 348*277 314*239 306*230
    15.6’’ ETS-0156S-6D 6 380*230 350*200 346*195
    17’’ ETS-0170S-4D 4 417*282 378*241 372*235
    18.5’’ ETS-0185S-6S 6 444*266 414*234 410*231
    19’’ ETS-0190S-4S 4 426*347 386*307 380*302
    19’’ ETS-0190S-4D 4 428*351 388*310 382*304
    21’’ ETS-0210S-4S 4 472*362 434*328 422*316
    24’’ ETS-0240S-4S 4 560*366 528*330 518*324
    26’’ ETS-0260S-4S 4 626*373 585*333 580.8*328.8
    32’’ ETS-0320S-4S 4 756*446 710*405 702*397
    42’’ ETS-0420S-4S 4 985*585 943*540 933*530
    47" ETS-0470S-4S 4 1095*642 1055*600 1045*590
